City Logistics Vehicle
Wonderful details
multi-angle shot
Fabulous from every angle
| project | Car | Economic electricity consumption (degree / 100Km full load) | |
| L*W*H（mm） | 2990*1090*1650 | Maximum speed (Km/h) | 32 |
| Case L*W*H（mm） | 1390*1050*1040 | Climbing ability (% full load) | 15 |
| Wheelbase（mm） | 2100 | Range | 60-80km |
| Minimum turning radius（mm） | 4300 | Auxiliary function configuration | |
| Track (back)(mm) | 1000 | Wiper system | ● |
| Number of seats (a) | 1 | Folding adjustable rear exterior mirror | ● |
| Curing quality (kg) | 360(without battery) | High-elastic leather seat | ● |

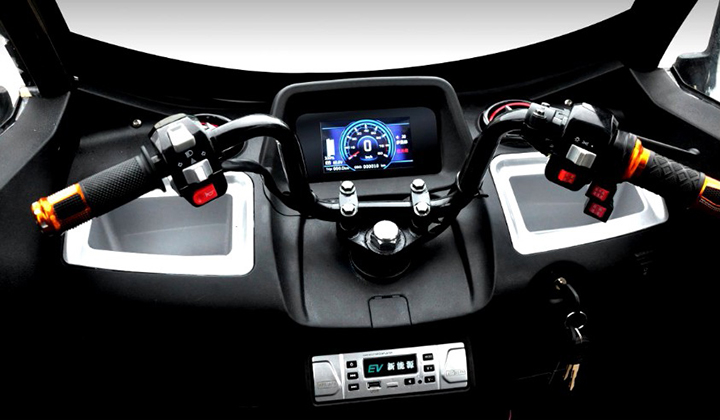

| Motor rated power（Kw/rpm） | 1.5kw | LCD electronic digital instrument | ● |
| Motor rated voltage（V） | 60V | Reversing beep warning | ● |
| Battery type | Colloid-free maintenance battery | Reversing image (compatible with USB mobile phone charging device) | ● |
| Motor type | Permanent magnet synchronization | Stereo speakers (a) | ● |
| Battery specification | 45Ah-60Ah optional | Luxury headlights | ● |
| Number of batteries (block) | 5 blocks | Combined LED tail light | ● |

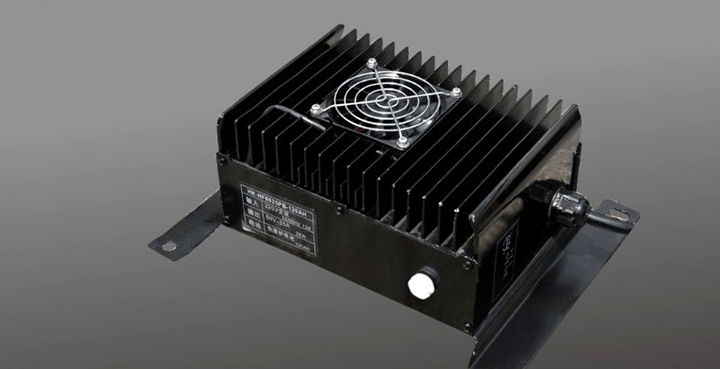

| Charger type | External charger | Reversing light | ● |
| Charging voltage（V） | 220V | License Plate Light | ● |
| Shift type | Controller automatic speed regulation | Natural wind | ● |
| Drive mode | Rear drive | Warm air | ● |
| Suspension System | Front fork suspension / rear wheel integral damping damping suspension | Mobile phone holder | ○ |
| Car body structure | Carrier frame structure | Foldable tablet | ● |
| Braking System | Front drum rear disc brake | Fire extinguisher | ○ |
| Parking brake type | Foot brake | Anti-theft device | ○ |
| Tire specifications | 4.00-10 | the color of car | Sky white, blue butterfly gray |
| Performance | |||
| Note: “—” is no such configuration; “●” is a standard configuration mount; “○” is an optional device | |||
